160PT63

Part Number: 160PT63

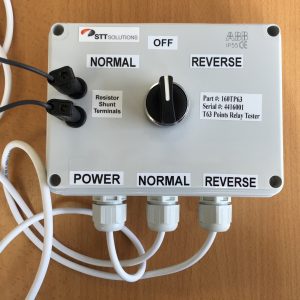

Description: Style 63 Points Relay Test Box

This unit permits testing of Styke 63 Points Machines. The power is taken from a 110V supply and is fed through a 1K, 6W resistor which can be shunted out of circuit. The power is fed through a 3 position stay put switch, normal to the left, off in the middle and reverse to the right. The output cables are fitted with Q Style Crimps. Remove the base wiring and install these during testing.
