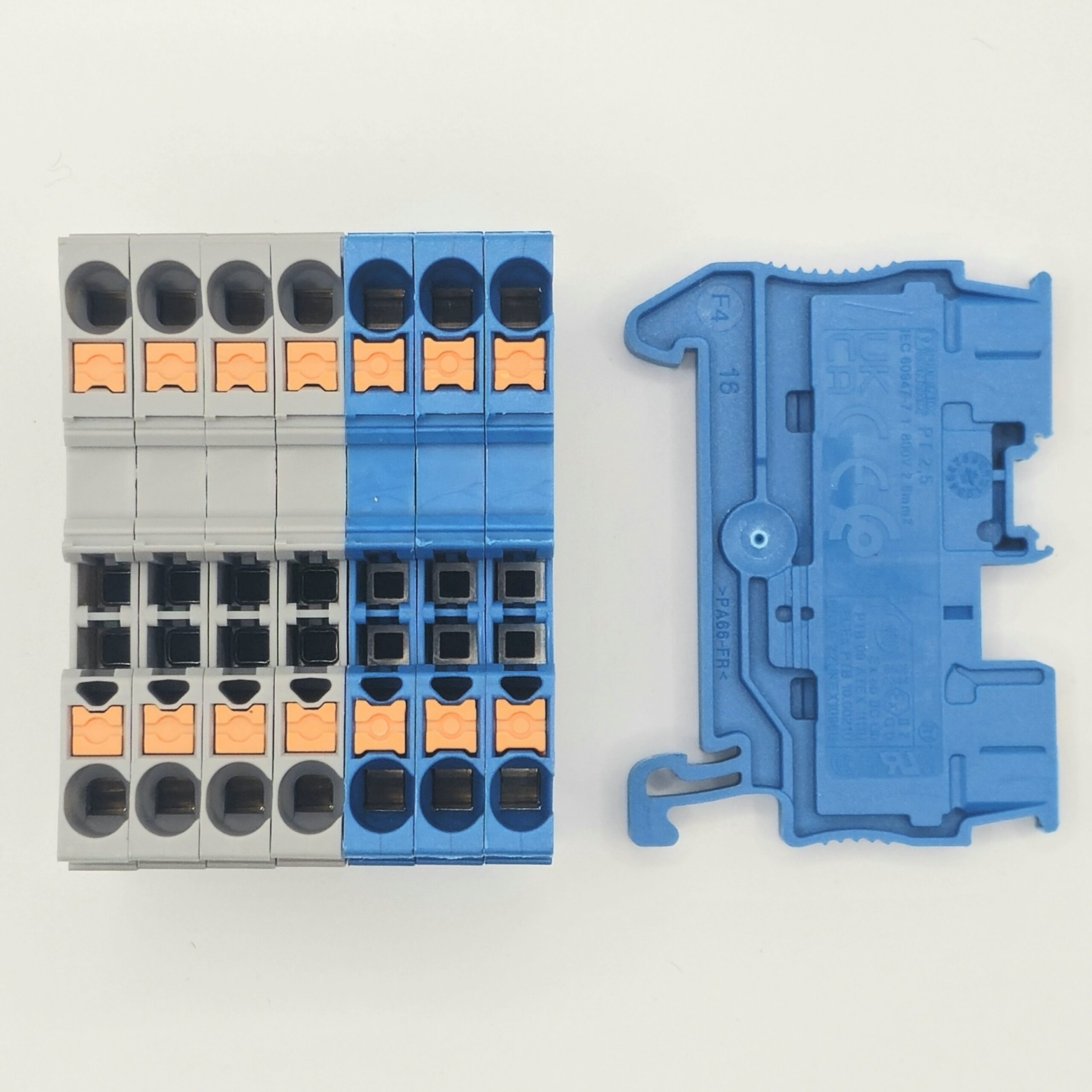

Terminal Feed Through PT 2.5

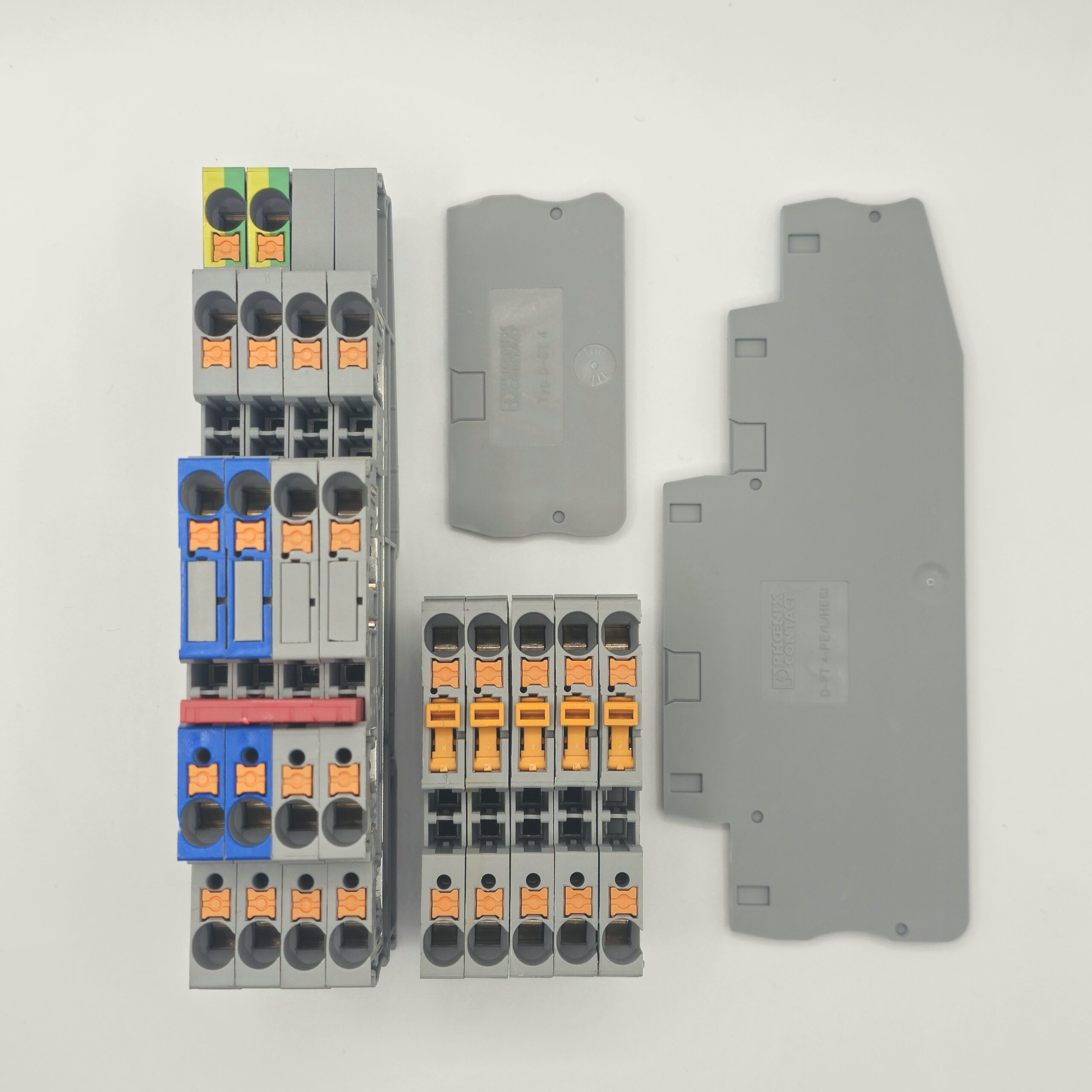

Terminal Knife Disconnect PT 4-MT

Multi-Level 2 Terminal Block LL
STT Part no. 12PT2-5N STT Part no. 12PT4-MT STT Part no. 12PT4-LL
IE SAP n/a IE SAP 193239 IE SAP n/a
TAB REF: 007 TAB REF: 009 TAB REF: 017


Multi-Level 3 Terminal Block LNE

Fuse Terminal PT 6-DREHSI

Terminal Feed Through PT 6-PE Earth
STT Part no. 12PT4-PELN STT Part no. 12PT6-D STT Part no. 12PT6-PE
IE SAP n/a IE SAP 193234 IE SAP 193237
TAB REF: 030 TAB REF: 001 TAB REF: 029


Terminal Feed Through PT 6 Blue

Terminal Feed Through PT 6 Grey

Disconnect Terminal PT 6 -T P/P HV
STT Part no. 12PT6N STT Part no. 12PT6L STT Part no. 12PT6-DT
IE SAP 193235 IE SAP 193236 IE SAP 193238
TAB REF: 002 TAB REF: 028 TAB REF: 003


Disconnect Term. PT 6 -T P/P HV OG

Terminal Feed Through PT 16 Earth

Terminal Feed Through PT 16 Blue
STT Part no. 12PT6-DTO STT Part no. 12PT16E STT Part no. 12PT16N
IE SAP 193497 IE SAP 197780 IE SAP 173729
TAB REF: 004 TAB REF: 013  TAB REF: 027



Terminal Feed Through PT 16 Grey

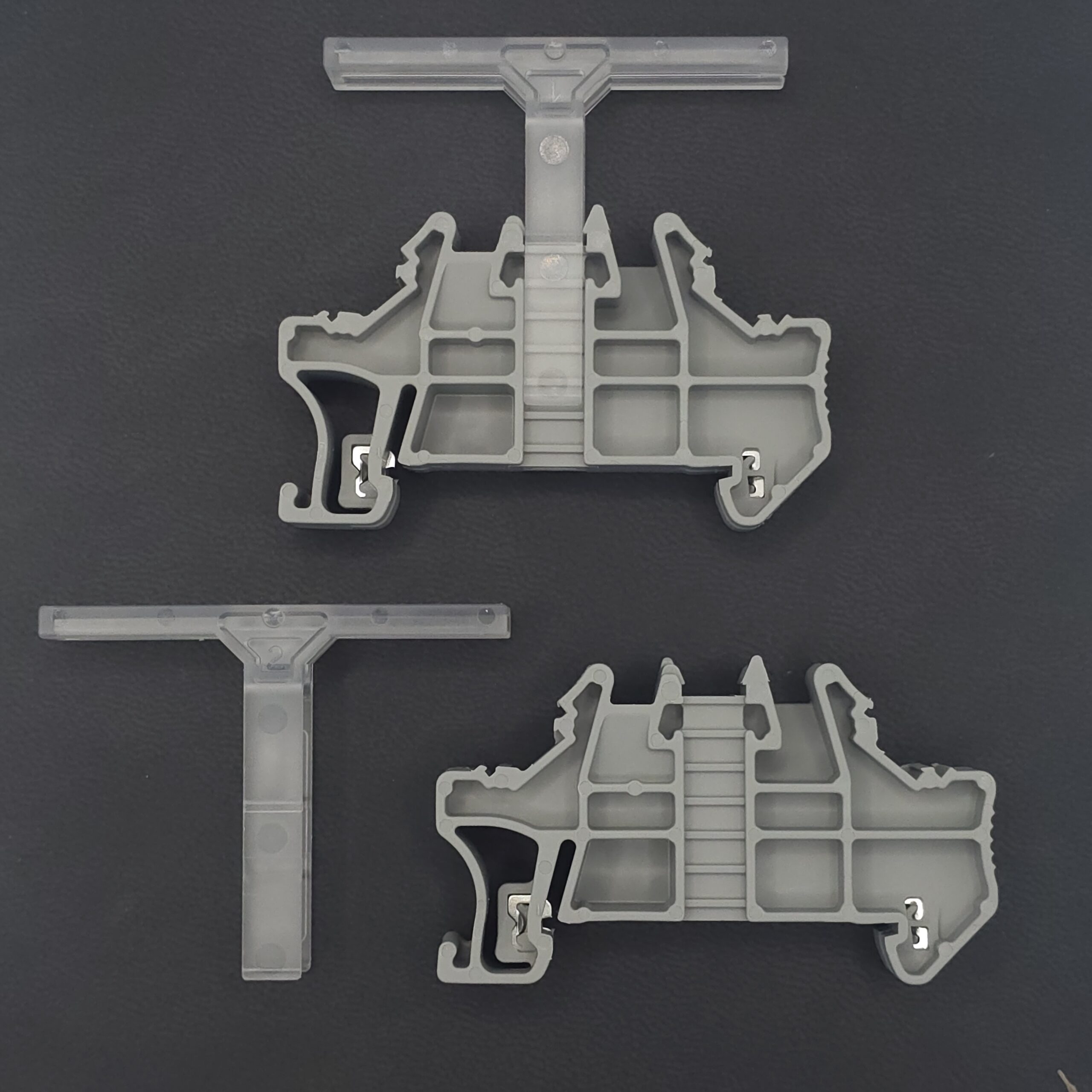

Phoenix Terminal Accessories


STT Part no. 12PT16L
IE SAP 173728
TAB REF: 012
